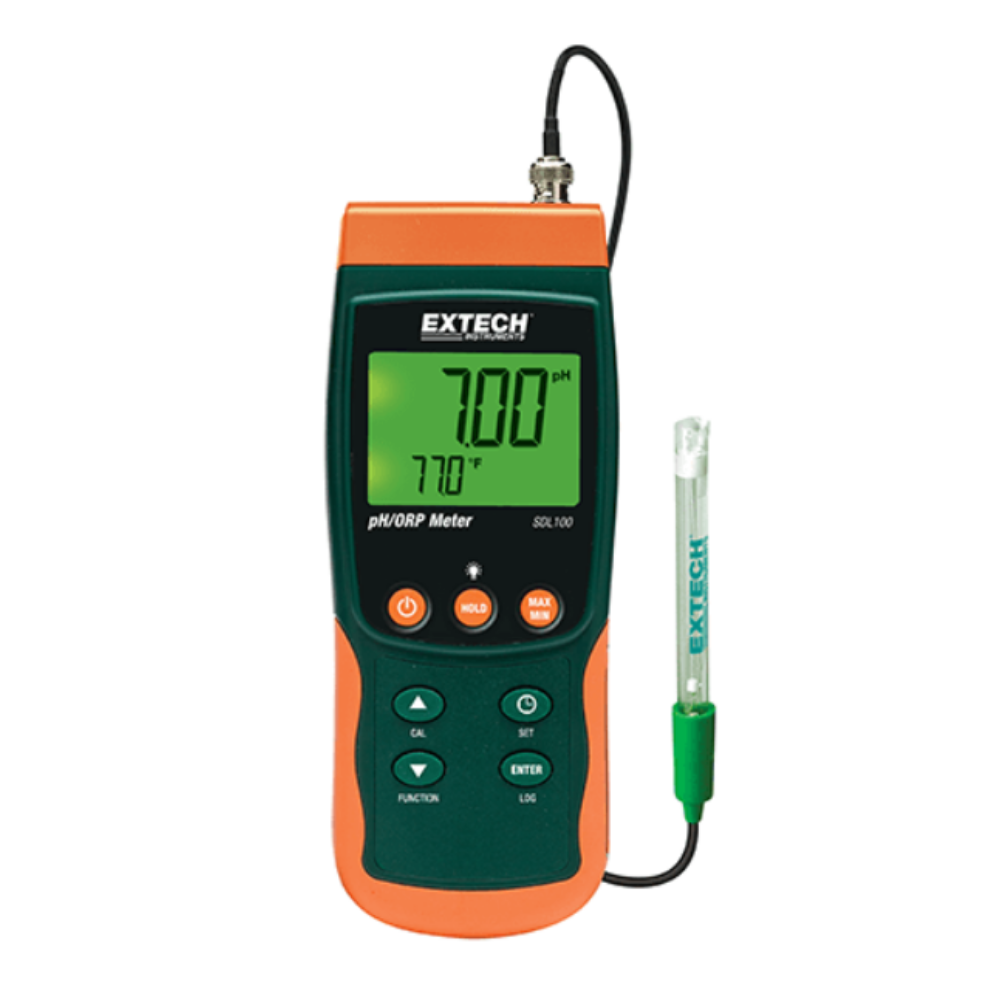

Extech SDL100

Extech Instruments

pH/ORP/Temperature Datalogger

Records data on an SD card in Excel® format


For order quantity more than 50, please feel free to request wholesale quotation

  • Description
  • Specification
  • Technical data

Description

  • Dual display of pH or mV and Temperature
  • ATC or manual Temperature compensation
  • 3 point calibration ensures the best linearity and accuracy
  • Large backlit dual LCD
  • Stores 99 readings manually and 20M readings via 2G SD card
  • User programmable sampling rate
  • Built-in PC interface
  • Min/Max and Data Hold functions, Auto power off
  • Complete with 6 x AA batteries, SD card, hard carrying case, sample buffers, mini pH electrode (60120B), and Thermistor temperature probe (850188)

Specification

Specifications Range
Type Cabled pH Electrode
pH 0 to 14pH
mV -1999mV to 1999mV
Temperature 32 to 149°F (0 to 65°C)
Max Resolution 0.01pH, 1mV, 0.1°
Basic Accuracy ±0.02pH, ±0.5% mV, ±1.8°F/1°C)
Memory 20M readings on 2G SD card
Dimensions/ Weight 7.2x2.9x1.9" (182X73X48mm)/16oz (455g)

Technical data

Datasheet [Click Here To Download]

User's Manual [Click Here To Download
